Ventilator home > Ventilator

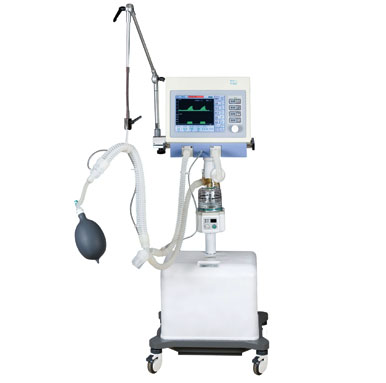

ICU Ventilator 005

time:2013-4-10 10:48:06  ‖  look:873次



电脑控制呼吸机 Computer Controlled Ventilator
微电脑控制、气动电控、定容、定压型治疗呼吸机 With micro-computor controlled, pneumatically driven and electronically controlled, with volume, pressure modes.







清晰的屏幕 Clear Display
10.4”高级彩色液晶显示屏,参数设定、监测、报警区域一日了然

10.4” TFT color display, the parameters could be clearly set and monitored.10.4”高级彩色液晶显示屏



操作更快捷Quick Operation
具有100%氧气快捷操作系统,确保随时提供纯氧 With 100% O2 flush system, make sure the pure oxygen could be provided on time.



多种通气模式 Various Ventilation Modes
提供多种通气模式,产品适用范围广 With various ventilation modes, the product could be widely used.

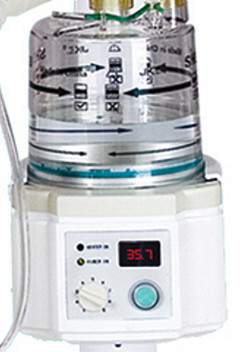

数码显示Digital Display
LED数码显示气体温度,确保患者舒适性 On Humidifier, the gas temperature could be digital showed on the display, make the patient comfortable.


LED数码显示气体温度



自动温控湿化系统 Automatically control temperature
自动温控湿化系统,操作维护更加简单Automatically control temperature, the operation and maintenance is easy.



液晶显示、随时监控 With SNT display show output pressure
液晶显示空气压缩机,随时监控空压机工作状态

 With SNT display show output pressure, and the working status of Air Compressor could be watched any time.

品质优良、简约大方 Good Quality, Simple and Elegant
模具化空压机外观设计,质地优良,简约、大方 The Air Compressor is of mould, the quality is good, and the appearance is simple and elegant.



提供同步雾化功能(选配)Optional: Nebulizer



具有后备电池With backup Battery



适用范围:成人、儿童、小儿

Patients: Adult, Pediatric



呼吸机主要技术参数:Main Technical Parameters:

通气模式:容量控制、压力控制、叹息、同步间歇指令通气、分钟指令通气、压力支持通气、持续正压、自主呼吸等模式

Mode: A/C, A/C+SIGH,SIMV, SIMV+PSV,PCV, PSV,MMV,PEEP,CPAP



监测参数:潮气量、呼吸频率(机控频率、自主频率)、吸呼比、气道压力、呼气末压力、分钟通气量(机控分钟通气量、自主通气量)、氧浓度、平均压等参数

Monitored Parameters:

Tidal volume, Breath frequency, I:E ratio, PEEP, Ppeak, MV, Oxygen concentration, Pmean

呼吸波形:压力—时间、流速—时间等波形

Monitored Waveform: P-t, F-t,



报警参数:分钟通气量上限、分钟通气量下限、潮气量上限、潮气量下限、气道压力上限、气道压力下限、呼吸频率上限、呼吸频率下限、氧浓度上限、氧浓度下限、呼气末压力上限、呼气末压力下限、电池电量低等参数

Alarm Parameters :

Tidal volume, Breath frequency, Peak pressure, PEEP upper, Oxygen concentration, MV upper



适用单位:

三级二级地市县级医院ICU、大型高端民营医院ICU

 Suitable for:

Country Hospital ICU, Private Hospital ICU, etc.
